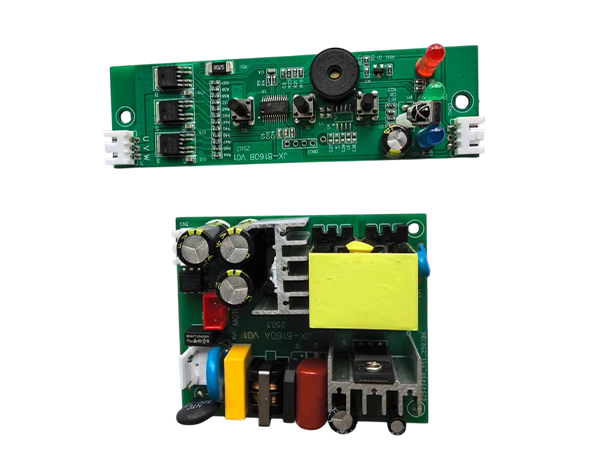

JX-8160

24V 36W BLDC Pedestal Fan Controller

Specifications
Rated power:60W
Rated input:AC220V
Input range:AC90-300V
Rated output:DC24V, 1.5A
RPM:500-2500RPM
Surge:4KV
Eficiency:>87%
PFC:>0.98
Features

Control way:  Sin wave control,FOC

Hall sensor: Senseless

Speed control: IR

Forward/Reverse function: Yes

SMPS main protection: Under voltage protection, Over current protection, Short circuit protection.

Motor control Protection: Current limit Protection,  Under voltage Protection, Over voltage Protection, Phase loss protection, Anti-reverse protection, Anti-lock protection.
