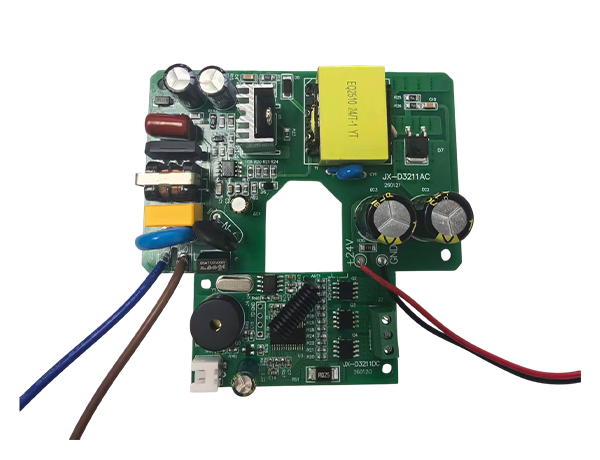

JX-D3211-RF

BLDC ceiling fancontroller with IR control , T shape

Specifications
Rated power: 36W
Rated input: AC440V
Input range: AC90-440V
Rated output: DC24V 1.5A
RPM: 120-400RPM
Surge voltage: 4KV
Eficiency:>86%
PFC:>0.98
Features

Control way:  Sin wave control,FOC

Hall sensor: Senseless

Speed control: RF 433MHz

Forward/Reverse function: Yes

SMPS main protection: Under voltage protection, Over current protection, Short circuit protection.

Motor control Protection: Current limit Protection,  Under voltage Protection, Over voltage Protection, Phase loss protection, Anti-reverse protection, Anti-lock protection.
