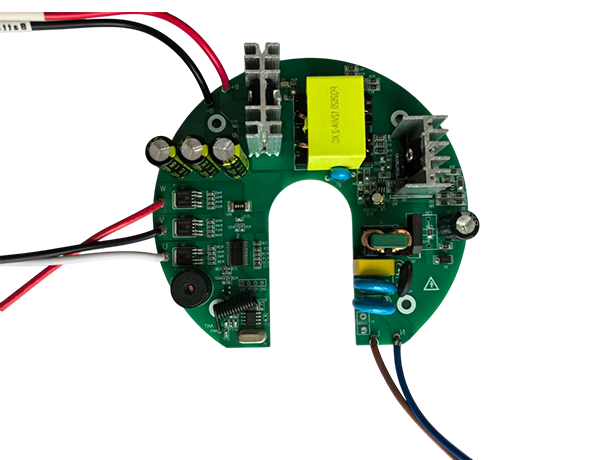

JX-D6122

ACDC ceiling fan controller,60W,high PFC,RF control,ACDC in 2pcs,universal model

Specifications
Rated power: 60W
Rated input :AC220V
Input range : AC90-290V
Rated output: DC15V,4.0
RPM:120-390RPM(56 inch blade)
Surge: 4KV
Efficiency: 87%
PFC :>0.97
THD:<8%
Features

Control way:  Sin wave control,FOC

Hall sensor: Senseless

Speed control: RF 433MHz

Forward/Reverse function: Yes

SMPS main protection: Under voltage protection, Over current protection, Short circuit protection.

Motor control Protection: Current limit Protection,  Under voltage Protection, Over voltage Protection, Phase loss protection, Anti-reverse protection, Anti-lock protection.
