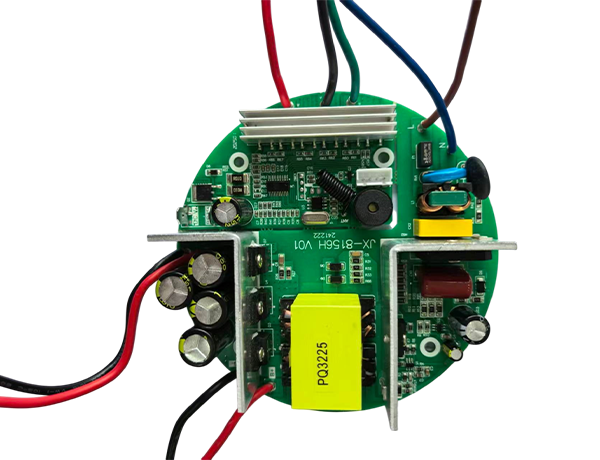

JX-8156H-RF

12V ACDC Dual Input Floor Fan Controller, 100W/120W, High PFC, RF Control

Specifications
Rated power:100-120W
Rated input:AC220V
Input range:AC90-290V
Rated output:DC15V, 7-8A
RPM:200-1500RPM
Surge:4KV
Eficiency:>91%
PFC:>0.98
Features

Control way:  Sin wave control,FOC

Hall sensor: Senseless

Speed control: RF 433MHz

Forward/Reverse function: Yes

SMPS main protection: Under voltage protection, Over current protection, Short circuit protection.

Motor control Protection: Current limit Protection,  Under voltage Protection, Over voltage Protection, Phase loss protection, Anti-reverse protection, Anti-lock protection.
